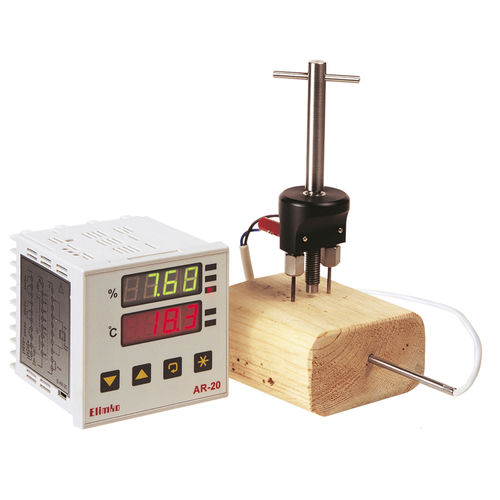

Wood moisture meter E-AR-20 series

with digital displaywith LED display

E-AR-20 Series digital wood moisture content meters are designed by using new generation micro-controllers. Unit dimensions are 96x96 mm, confirming to IEC/TR 60668 and programmable easily. E-AR-20 is used at such industrial benches as wood process & coating, chipboard production etc. E-AR-20 Series digital wood moisture content meter has two displays, one is for humidity values and the other is for temperature shown at the same time. Strike type of humidity probe is used together with E-AR-20 which has one analog output for humidity values. And also E-AR20 has Pt-100 input for temperature regulations. As an optional, it can be connected to a PC via RS485 MODBUS communication line and data can be followed and stored. Accuracy Class 0.1 Operating Temperature -10 ... 55°C Power Supply 85-265 V AC / 85-375 V DC 20-60 V AC / 20-85 V DC Input 1 Pt-100, 1 Moisture Probe input Output 1 analog output (0/4-20 mA) Communication RS485 Weight 430 gr
