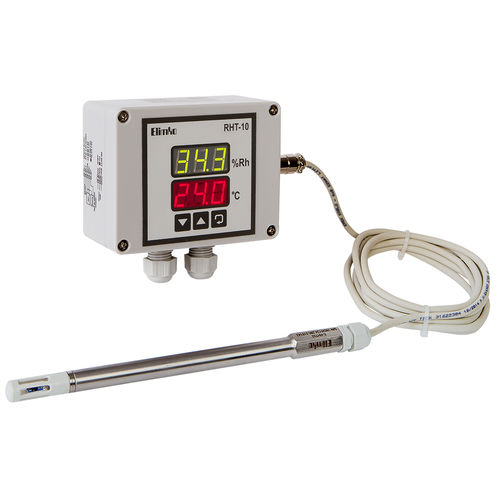

Relative humidity and temperature transmitter E-RHT-10 serieswall-mount4-20 mARS-485
Add to favorites
Compare this product
Characteristics
- Type
- relative
- Mounting
- wall-mount
- Output
- RS-485, 4-20 mA
- Protection level
- waterproof
- Other characteristics
- with integrated digital display
- Measuring range (%)
Min.: 0 %
Max.: 100 %
- Precision
2 %
- Resolution
0.1 %
- Measuring range (temperature)
Min.: -40 °C
(-40 °F)Max.: 120 °C
(248 °F)- Resolution (temperature)
0.1 °C
(32.18 °F)- Working temperature
Min.: -40 °C
(-40 °F)Max.: 120 °C
(248 °F)
Description
E-RHT-10 is a microprocessor based transmitter that uses a single chip relative humidity and temperature sensor module. The single chip sensor provides 12/14 bit (humidity / temperature) serial digital output for each reading. The sensor includes two calibrated micro sensors for relative humidity and temperature.
The transmitter is mounted in a waterproof plastic case and it is available with or without display unit. The transmitters can be employed in all common applications by choosing the appropriate mounting configurations.
