Radar level sensor E-RLT-100 series
for solidsfor liquids2-wire

Add to favorites

Compare this product

Go to the Elimko Elektronik Imalat ve Kontrol website for more information

Characteristics

Technology

radar

Medium

for liquids, for solids

Interface

4-20 mA, 2-wire, HART

Applications

for silos

Other characteristics

stainless steel, flange-mount, with digital display, IP65

Level range

35 m
(114'09" )

Process pressure

Min.: -1 bar
(-14.5 psi)

Max.: 6 bar
(87.02 psi)

Process temperature

Min.: -40 °C
(-40 °F)

Max.: 130 °C
(266 °F)

Description

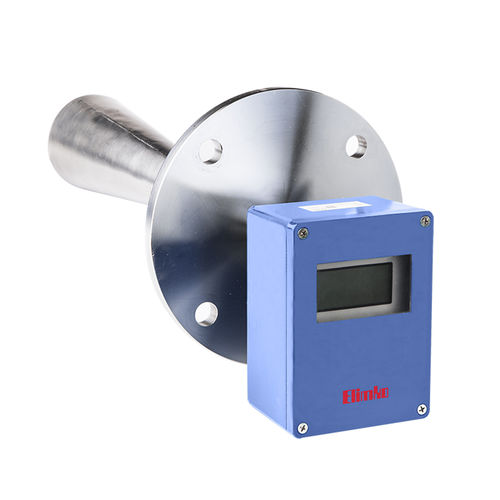

E-RLT-100 series Radar Level Sensors are designed to measure the level of material in silos. 24 GHz K-Band FMCW Radar provides high resolution reliable measurement with narrow beam microwave transmission. Optional two-wire 4-20mA electrical interface with optional HART output simplifies installation and reduces maintenance costs. The antenna options with different lengths can be adapted to various process conditions. • 24 GHz K Band High Resolution FMCW Radar • Very narrow radiation that provides interference free measurement in small silos. • Stainless steel funnel antenna with different dimensions • Front panel LCD display and keys for easy configuration of sensor parameters • Faulty echo and interference prevention filter • PC configuration software
