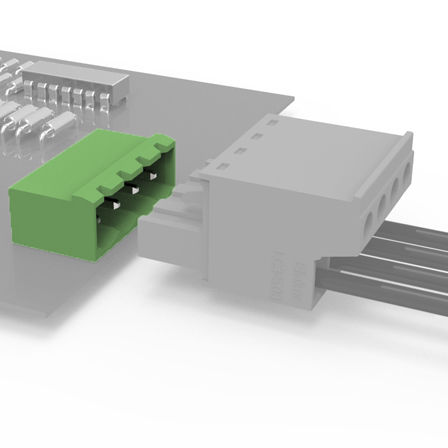

Board-to-wire connector LZ1R-5.08 seriesPCBflatfemale
Add to favorites
Compare this product
Characteristics
- Format
- board-to-wire, PCB
- Shape
- flat
- Connection type
- female, male, plug-in
- Material
- plastic
- Primary current
Max.: 17.5 A
8 A, 17.5 A
Min.: 15 A
- Voltage
Max.: 320 V
320 V, 400 V
Min.: 300 V
- Pitch
5.08 mm
(0.2 in)
Description
Part number: LZ1R-5.08
Center Spacing: 5.08mm(. 20")
Number of Poles: 2-24 Poles
Approvals: UL, CE Certified, RoHS Comply
Specifications:
IEC: 320V/17.5A
UL: 300V/15A
Housing material: polyamide, 94VO
Operating temperature: 105°C (221°F) max., -40°C (-40°F) min.
Our Services:
High quality
Reasonable Prices
Fast shipping
Accept small orders
Tooling development
OEM service provided
QC Team:
QC team with more than 30 professional and technical personnel who ensure 100% products
checking.
Material:Rhodia PA66
Semi-finished products inspection:Product inspection before 100% finished. Such as Visual
Inspection, Leak Testing, Comprehensive Safety Test and so on.
Finished Product Inspection: Quality and property test before products are packed and loaded.
