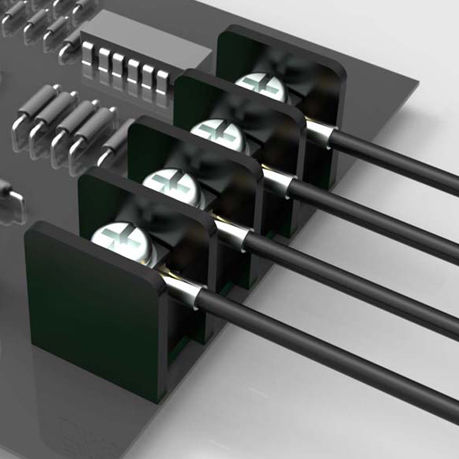

Board-to-wire connector LWB-9.52 seriesPCBflatscrew
Add to favorites
Compare this product
Characteristics
- Format
- board-to-wire, PCB
- Shape
- flat
- Connection type
- screw
- Material
- plastic
- Primary current
15 A, 20 A
Min.: 15 A
Max.: 15 A
- Voltage
300 V
Min.: 300 V
Max.: 300 V
- Pitch
9.52 mm
(0.375 in)
Description
Part number: LW1B-9.52
Center Spacing: 9.52mm(. 20")
Number of Poles: 2-24 Poles
Approvals: UL, CE Certified, RoHS Comply
Specifications:
IEC: 300V/15A
UL: 300V/15A
Wire size: #22-12AWG
Housing material: polyamide, 94VO
Contact material: brass tin plated
Termination: screw
Operating temperature: 105°C (221°F) max., -40°C (-40°F) min.
Our Services:
High quality
Reasonable Prices
Fast shipping
Accept small orders
Tooling development
OEM service provided
QC Team:
QC team with more than 30 professional and technical personnel who ensure 100% products
checking.
Material:Rhodia PA66
Semi-finished products inspection:Product inspection before 100% finished. Such as Visual
Inspection, Leak Testing, Comprehensive Safety Test and so on.
Finished Product Inspection: Quality and property test before products are packed and loaded.
