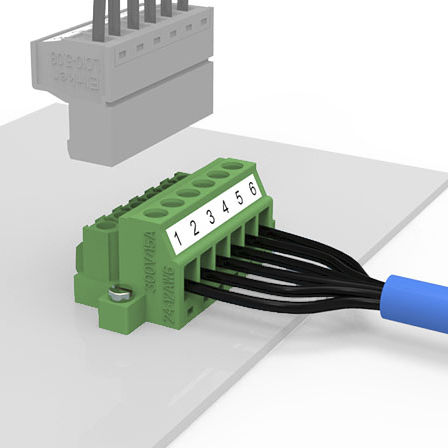

Screw connection terminal block LC17-5.08
plastic

screw connection terminal block
screw connection terminal block
screw connection terminal block
screw connection terminal block
screw connection terminal block
Add to favorites
Compare this product


Characteristics

Connection
screw connection
Other characteristics
plastic
Cross-section

Max.: 2.5 mm²
(0 in²)

Min.: 2.5 mm²
(0 in²)

Current

Max.: 20 A

Min.: 12 A

Nominal voltage

Max.: 300 V

Min.: 250 V

Description

Part number: LC17-5.08 Center Spacing: 5.08mm(. 20") Number of Poles: 2-24 Poles Approvals: UL, CE Certified, RoHS Comply Salt spray test 72 hours Flame retardant rating V0 Prevent error of connection Custom color Custom customizable the pad printing or label Specifications: IEC: 320V/20A UL: 250V/12A Cross section area: 2.5mm2 Wire size: #24-12AWG Housing material: polyamide, 94VO Contact material: brass tin plated Termination: screw Operating temperature: 105°C (221°F) max., -40°C (-40°F) min. Our Services: High quality Reasonable Prices Fast shipping Accept small orders Tooling development OEM service provided QC Team: QC team with more than 30 professional and technical personnel who ensure 100% products checking. Material:Rhodia PA66 Semi-finished products inspection:Product inspection before 100% finished. Such as Visual Inspection, Leak Testing, Comprehensive Safety Test and so on. Finished Product Inspection: Quality and property test before products are packed and loaded.
