3-phase motor 2EL080M series
induction400 V460 V

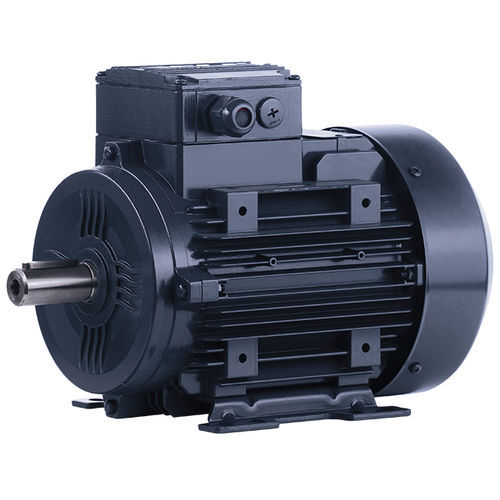

3-phase motor - 2EL080M series - ELK Motor - induction / 400 V / 460 V
3-phase motor - 2EL080M series - ELK Motor - induction / 400 V / 460 V
Add to favorites
Compare this product


Characteristics

AC/DC
3-phase
Type
induction
Voltage
400 V, 460 V, 230 V
Protection class
IP55
Configuration
aluminum, squirrel cage
Efficiency classes
IE2
Number of poles
4-pole, 6-pole
Cooling mechanism
self-ventilated
Applications
for industrial applications
Other characteristics
low-voltage, high-efficiency, high-torque
Power

0.37 kW, 0.43 kW, 0.55 kW, 0.64 kW
(0.503 hp, 0.585 hp, 0.748 hp, 0.87 hp)

Intensity

Max.: 2.6 A

Min.: 1.07 A

Torque

3.65 Nm, 3.82 Nm, 5.64 Nm
(2.6921 ft.lb, 2.8175 ft.lb, 4.1599 ft.lb)

Rotational speed

Max.: 1,735 rpm
(10,901.33 rad.min-1)

Min.: 925 rpm
(5,811.95 rad.min-1)

Diameter

155 mm
(6.1 in)

Operating temperature

Max.: 40 °C
(104 °F)

Min.: -15 °C
(5 °F)

Description

Structure Shape B5 / B3 / B35 / B34 Terminal Box Position Top Frame Size 080 Frequency 50 Hz Moment of Inertia 0.00175 kg.m² Load 4/4 3/4 1/2 Efficiency 77.1 % 77.1 % 77.1 % Power Factor 0.71 Insulation Class F (155°C) Temperature Rise B (80°K) Maximum Altitude 1000 m Methods of Cooling IC 411 Sound Pressure Level 50 dB(A) Vibration Class A Duty Cycle S1 (Continuous Running Duty) Service Factor 1.15 Direction of Rotation Clockwise Motor Weight 10.0 kg Bearings DS (6204 ZZ) NS (6204 ZZ)
