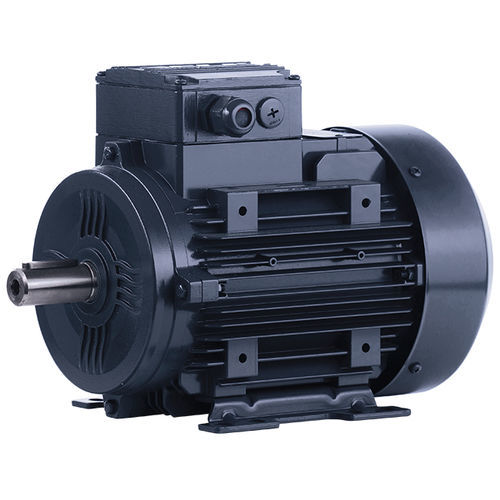

3-phase motor 3EL080M seriesinduction400 V460 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- 3-phase
- Type
- induction
- Voltage
- 400 V, 460 V, 230 V
- Protection class
- IP55
- Configuration
- aluminum, squirrel cage
- Efficiency classes
- IE3
- Number of poles
- 4-pole, 6-pole, 2-pole
- Cooling mechanism
- self-ventilated
- Applications
- for industrial applications
- Other characteristics
- low-voltage, high-efficiency, high-torque
- Power
Max.: 1.28 kW
(1.74 hp)Min.: 0.37 kW
(0.503 hp)- Intensity
Max.: 3.91 A
Min.: 1.01 A
- Torque
Max.: 5.62 Nm
(4.1451 ft.lb)Min.: 2.49 Nm
(1.8365 ft.lb)- Rotational speed
Max.: 3,470 rpm
(21,802.65 rad.min-1)Min.: 930 rpm
(5,843.36 rad.min-1)- Diameter
155 mm
(6.1 in)- Operating temperature
Max.: 40 °C
(104 °F)Min.: -15 °C
(5 °F)
Description
Structure Shape B5 / B3 / B35 / B34
Terminal Box Position Top
Frame Size 080
Frequency 50 Hz
Moment of Inertia 0.00103 kg.m²
Load 4/4 3/4 1/2
Efficiency 80.7 % 80.7 % 80.7 %
Power Factor 0.84
Insulation Class F (155°C)
Temperature Rise B (80°K)
Maximum Altitude 1000 m
Methods of Cooling IC 411
Sound Pressure Level 54 dB(A)
Vibration Class A
Duty Cycle S1 (Continuous Running Duty)
Service Factor 1.20
Direction of Rotation Clockwise
Motor Weight 10.0 kg
Bearings DS (6204 ZZ) NS (6204 ZZ)
