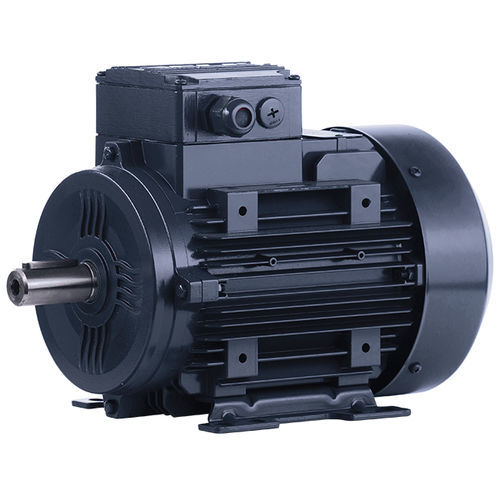

3-phase motor 3EL112M seriesinduction400 V460 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- 3-phase
- Type
- induction
- Voltage
- 400 V, 460 V, 690 V
- Protection class
- IP55
- Configuration
- aluminum, squirrel cage
- Efficiency classes
- IE3
- Number of poles
- 4-pole, 6-pole, 2-pole
- Cooling mechanism
- self-ventilated
- Applications
- for industrial applications
- Other characteristics
- low-voltage, high-efficiency, high-torque
- Power
2.2 kW, 2.55 kW, 4 kW, 4.55 kW, 4.64 kW
(2.991 hp, 3.467 hp, 5.438 hp, 6.186 hp, 6.309 hp)- Intensity
Min.: 4.2 A
Max.: 8.57 A
- Torque
13.1 Nm, 21.9 Nm, 26.16 Nm
(9.6621 ft.lb, 16.1526 ft.lb, 19.2946 ft.lb)- Rotational speed
Min.: 960 rpm
(6,031.86 rad.min-1)Max.: 3,500 rpm
(21,991.15 rad.min-1)- Diameter
215 mm
(8.46 in)- Operating temperature
Min.: -15 °C
(5 °F)Max.: 40 °C
(104 °F)
Description
Structure Shape B5 / B3 / B35 / B34
Terminal Box Position Top
Frame Size 112
Frequency 50 Hz
Moment of Inertia 0.00618 kg.m²
Load 4/4 3/4 1/2
Efficiency 88.1 % 88.1 % 88.1 %
Power Factor 0.90
Insulation Class F (155°C)
Temperature Rise B (80°K)
Maximum Altitude 1000 m
Methods of Cooling IC 411
Sound Pressure Level 65 dB(A)
Vibration Class A
Duty Cycle S1 (Continuous Running Duty)
Service Factor 1.20
Direction of Rotation Clockwise
Motor Weight 29.0 kg
Bearings DS (6206 ZZ) NS (6206 ZZ)
