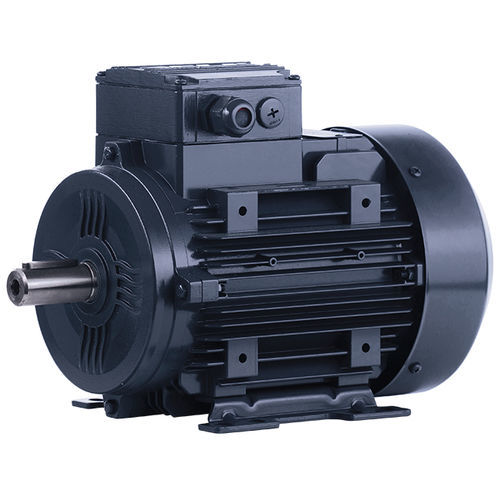

3-phase motor 3EL160 seriesinduction400 V460 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- 3-phase
- Type
- induction
- Voltage
- 400 V, 460 V, 690 V
- Protection class
- IP55
- Configuration
- aluminum, squirrel cage
- Efficiency classes
- IE3
- Number of poles
- 4-pole, 6-pole, 2-pole
- Cooling mechanism
- self-ventilated
- Applications
- for industrial applications
- Other characteristics
- high-efficiency, high-torque
- Power
Min.: 7.5 kW
(10.197 hp)Max.: 21.5 kW
(29.232 hp)- Intensity
Min.: 8.98 A
Max.: 31.7 A
- Torque
Min.: 35.6 Nm
(26.2572 ft.lb)Max.: 108 Nm
(79.6567 ft.lb)- Rotational speed
Min.: 972 rpm
(6,107.26 rad.min-1)Max.: 3,540 rpm
(22,242.48 rad.min-1)- Diameter
316 mm
(12.44 in)- Operating temperature
Min.: -15 °C
(5 °F)Max.: 40 °C
(104 °F)
Description
Structure Shape B5 / B3 / B35 / B34
Terminal Box Position Top
Frame Size 160
Frequency 50 Hz
Moment of Inertia 0.03318 kg.m²
Load 4/4 3/4 1/2
Efficiency 91.2 % 91.2 % 91.2 %
Power Factor 0.88
Insulation Class F (155°C)
Temperature Rise B (80°K)
Maximum Altitude 1000 m
Methods of Cooling IC 411
Sound Pressure Level 69 dB(A)
Vibration Class A
Duty Cycle S1 (Continuous Running Duty)
Service Factor 1.20
Direction of Rotation Clockwise
Motor Weight 114 kg
Bearings DS (6309 ZZ) NS (6209 ZZ)
