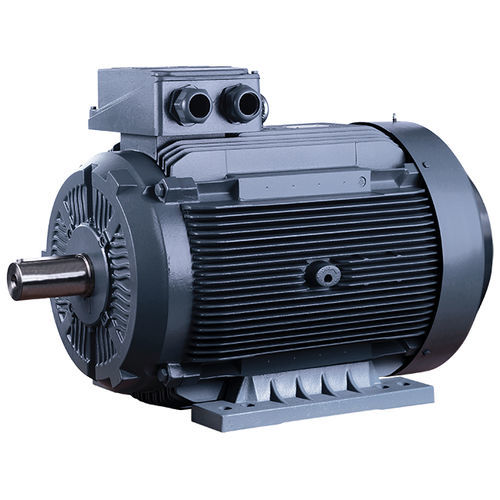

3-phase motor 3EG225 seriesinduction400 V460 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- 3-phase
- Type
- induction
- Voltage
- 400 V, 460 V, 690 V
- Protection class
- IP55
- Configuration
- cast iron, squirrel cage
- Efficiency classes
- IE3
- Number of poles
- 4-pole, 6-pole, 2-pole
- Cooling mechanism
- self-ventilated
- Applications
- for industrial applications
- Other characteristics
- low-voltage, high-efficiency, high-torque
- Power
Max.: 52.2 kW
(70.972 hp)Min.: 30 kW
(40.789 hp)- Intensity
Max.: 80 A
Min.: 33.3 A
- Torque
144.4 Nm, 239 Nm, 290.8 Nm, 290.9 Nm
(106.504 ft.lb, 176.2774 ft.lb, 214.4831 ft.lb, 214.5568 ft.lb)- Rotational speed
Max.: 3,565 rpm
(22,399.56 rad.min-1)Min.: 985 rpm
(6,188.94 rad.min-1)- Diameter
438 mm
(17.24 in)- Operating temperature
Max.: 40 °C
(104 °F)Min.: -15 °C
(5 °F)
Description
Structure Shape B5 / B3 / B35 / B34
Terminal Box Position Top
Frame Size 225
Frequency 50 Hz
Moment of Inertia 0.25353 kg.m²
Load 4/4 3/4 1/2
Efficiency 94.3 % 94.3 % 94.3 %
Power Factor 0.91
Insulation Class F (155°C)
Temperature Rise B (80°K)
Maximum Altitude 1000 m
Methods of Cooling IC 411
Sound Pressure Level 74 dB(A)
Vibration Class A
Duty Cycle S1 (Continuous Running Duty)
Service Factor 1.20
Direction of Rotation Clockwise
Motor Weight 335 kg
Bearings DS (6313 ZZ) NS (6213 ZZ)
