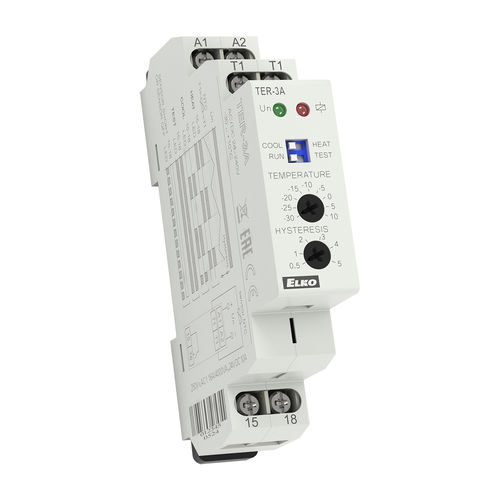

Adjustable thermostat TER-3 series

DIN railanalog

Single thermostat for temperature monitoring and regulation in range -30 °C to +70 °C (-22 °F to 158 °F) in six ranges Can be used for monitoring temperature e.g. in switchboards, heating systems, cooling systems, liquids, radiators, motors, devices, open spaces, etc. Function of short-circuit or sensor disconnection monitoring Possibility to set function heating/cooling ( setting is done by DIP switch) Adjustable hysteresis (sensitivity) , switching by potentiometer in range 0.5 to 5°C/ 32.9 to 41 °F Choice of external thermo sensors with double insulation in standard lengths 3, 6 and 12 m (9.8´,19.7´ and 29.5´) It is possible to place sensor directly on terminal block for temperature monitoring in a switchboard or in its surroundings Multivoltage supply AC/DC 24 -240 V, not galvanically separated Output contact 1x NO - SPST 16 A /250 V AC1 Red LED indicates status of output, green LED indicates energization of the device 1-MODULE, DIN rail mounting
