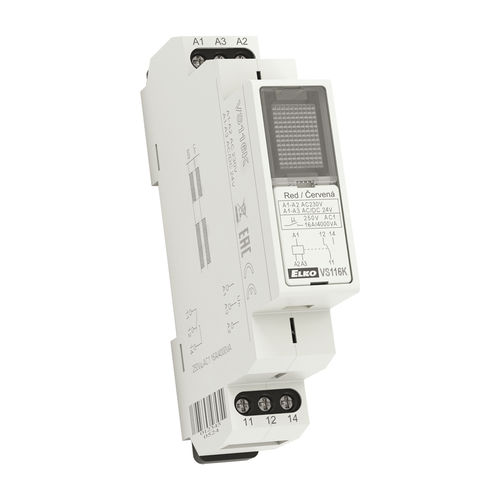

24 Vdc electromechanical relay VS seriesDIN railpowerauxiliary
Add to favorites
Compare this product
Characteristics
- Control voltage
- 24 Vdc
- Mounting
- DIN rail
- Function
- power, auxiliary
- Other characteristics
- modular
- Switching current
Max.: 16 A
Min.: 8 A
Description
Serves for reinforcing or multiplying of contacts of existing device
Output contact:
VS116K, VS116U: 1x changeover 16 A
VS308K, VS308U: 3x changeover 8 A
VS316/24, VS316/230: 3x changeover 16 A possibility of connection into 3-phase circuit
Output status is indicated by highly luminous LED
Choice of LED color for output status indication: red, green, yellow, blue or white LED*
Inbuilt diode for suppressing unwanted peaks while relay opening and RC element against disturbances
1- MODULE, DIN rail mounting
