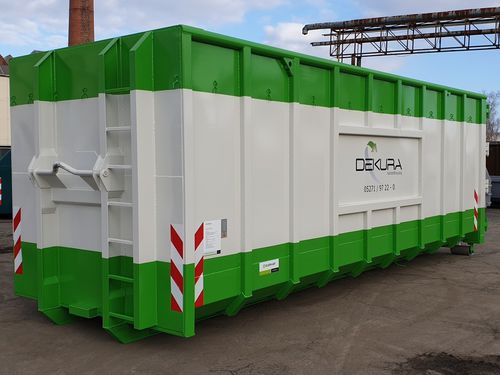

Steel waste container ABR-DSD

industrial wastewith lid

Standard design containers are primarily intended for the collection and transport of general municipal and industrial waste. Suitable for transport and storage of loose material too. • acc. to the German (DIN 30 722) norm, • hook, cable, chain lifting system or a combination of thereof, • EN S235 or S355 steel, thickness 2 - 6 mm, • continuous welding (except for the bottom reinforcements where disconnected welding used), • top profile - square section 100 × 80 × 4 mm event. tube 89 × 6 mm, • rails and lifting made of IPN 180, rear frame of a rolled section UPN 180, • vertical reinforcements of sides and bottom beams U 100 × 60 × 3 mm • spacing of 750 mm, • transition between sides and bottom 45, 90° or so called round corner, • the rear side of the container formed of double-wing, single-wing or flap door • wheels and hinges provided with grease cups, • central door locking operated from the side of the container, • tarpaulin hooks, • a ladder on containers with inner height min. 1 250 mm (fulfilling the safety norms).
