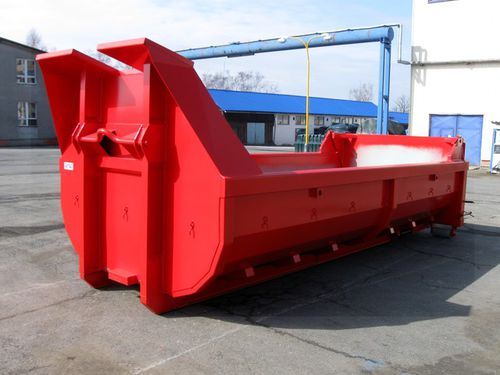

Steel skip container ABR-HBS

industrial wastehydraulic

Designed for the transport of building rubble and aggregates. The containers are structurally designed with regard to maximum resistance in harsh conditions. They are made of high-strength and abrasion-resistant steel (HB 400/450), the solid upper hem of QSTE. For easy emptying, equipped as standard with a robust raised fl ap with massive locking. On request, we supply containers with a hydraulically operated flap. The raised front, which is also made of high-strength steel, protects the vehicle‘s cab in the demanding conditions in which this type of container is most often used. • made entirely of HB 400/450 steel with a thickness of 5 mm, • hook NH 1570/60, • IPN 180 reinforced frame, • top hem 5 mm/Qste 690, • floor reinforcements longitudinal with rails, • floor reinforcement profile U 100x70x5, • rear beam UPN 180, • raised front and dismountable flap door, • mechanical, hydraulic or pneumatic operation of the flap door (type ABR-HBS-R).
