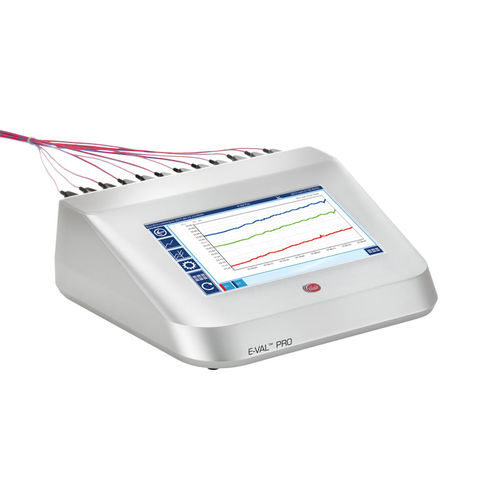

Thermal validation system E-Val™ Pro

thermocouple

The E-Val Pro thermocouple system for thermal validation is immensely easy to handle within controlled environments due to its compact size and light weight. The thermocouple system complies with FDA regulations as well and GAMP guidelines and is designed to be the ideal solution for any thermal validation process. The secure and password protected module can handle up to 40 thermocouples and the large internal memory is capable of holding up to 10 studies at a time. The wired thermocouple system has a built-in 8-hour battery and can be used as a stand-alone unit or be connected to a PC via LAN/USB. The E-Val Pro is equipped with interchangeable sensor arrays, which can easily be removed for service and calibration. With 4 and 12-channel arrays available, the E-Val Pro can handle all thermocouple types as well as analog and digital inputs. Key Features and Benefits Light and compact module Individual cold junction compensation Easy to handle and transfer from study to study Up to 40 sensors per module USB connectors Graphical Interface and touch display Password protected module Clean room suitable due to no fan Stand-alone function E-Val Pro Operating Range: 5 °C to 50 °C Environmental: 0 – 90% RH, non-condensing Sample Rate: 1 Second to 24 Hours Weight: 3.0 kg (including battery and 40 channels) Electrical Protection Class: IP40 Power Consumption: Less than 9 Watts (40 temperature sensors) Memory: 40 channels 1 second sample rate in 8 hours for 10 sessions Number of Channels: 40 channels Time: Time Accuracy: ± 1 Second per 24 Hours
