Temperature indicator ETI - Recorder

digitalRS-485for Pt1000 probe

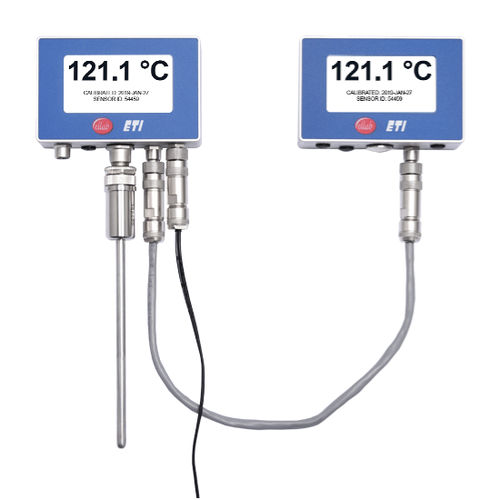

Ellab Temperature Indicator ETI - Recorder The ETI Recorder is a high quality digital temperature-indicating device designed for displaying and documenting the processing temperature in retorts. It complies with FDA 21 CFR Part 113, and it is ideal for thermal processing of low-acid canned foods. The ETI Recorder has a digital display that is easy to read, offers an accuracy of +/- 0.1°C, and does not constitute a potential source of mercury contamination. Compliant with FDA 21 CFR Part 113 • FDA compliant alternative to mercury-in-glass thermometers • Dual interchangeable sensor • NIST traceable (or equivalent) calibration certificate • In-house calibration with full documentation • Remote display option (1,200 m / 3,900 ft.) • Rechargeable backup battery for 8 hours • Output channel for automatic alarms • Data logging with the ability to export to Excel Key Features and Benefits Pt1000 Sensing Elements Remote Display or PC Connection ETI Recorder Main Unit Operating Range: 0 to +70°C / +32 to +158°F Sensor Operating Range: -100 to +150°C / -148 to +302°F Calibrated Temperature Range: 0 to +140 °C / +32 to +284°F Accuracy: ± 0.1°C / 0.18°F (-40 to +150 °C /-40 to +302 °F) Resolution: ± 0.1°C / 0.1°F Probe & Sensor: Intelligent 6 mm Diameter Stainless Steel Sensor With Two Independent Pt-1000 Sensing Elements and A/D Converters Environmental: 0 – 90% RH, non-condensing Ingress Protection Code: IP67 Output: RS485 External Power: 7 to 30 V DC Battery Backup: Internal, Rechargeable, 8 Hour Display Update Rate: 1 Second Memory: 60,000 Data Points
