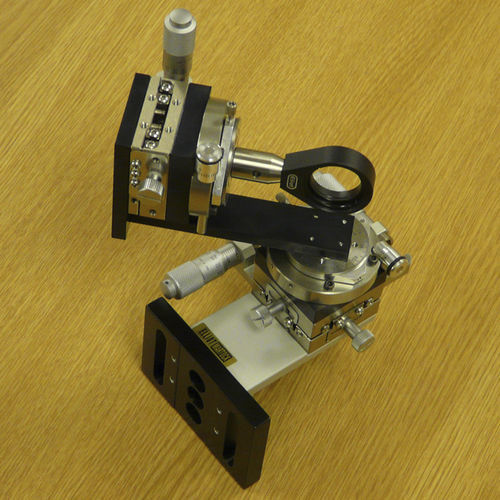

Alignment system E22933

Independent movement in five axes Five-Axis Lens Positioning Stage • Combination of precision rotation stages and slides • Five degrees of independent movement • 10 µm micrometer adjusters • 360° free rotation in two axes with clamp screws • Tangent screws for fine adjustment The E22933 combines Elliot Scientific's precision manufacturing and expertise in component design to provide a specialist lens holding stage with two axes of independent rotational movement combined with three in precise linear slide motion. Larger or smaller units can be manufactured as the design is scalable. If you have specific interests for different sizes, then please let us know.
