XYZ stage MDE623

piezomanual3-axis

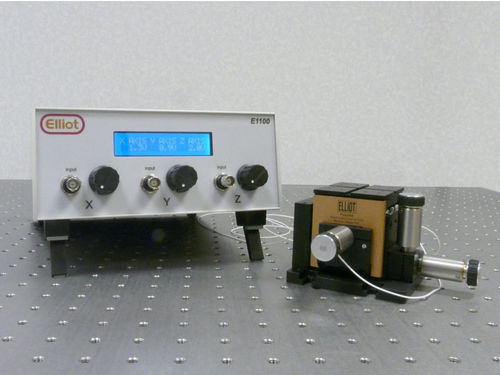

Complete system comprising the E1100 3-channel controller together with the MDE123 Elliot Gold™ Series XYZ flexure stage fitted with piezo actuators providing 25 µm of piezo travel with 10 nm resolution in each of the three axes. • Right Handed Configuration (Left Handed available to order) • 10 nm resolution • 2 mm coarse manual travel • 25 µm piezo adjustment travel • Orthogonal alignment grooves • Ultra-stable patented† design XYZ flexure stage E1100 Piezo Controller: • USB interface • Channels: 3 independent • Output voltage: 0 to 150 V • Output current: 50 mA/channel • Output noise: < 50 µVRMS • Digital readout on each channel • Internal/external voltage control • Ext. input voltage control 0 to 10 V • Output stability: <0.01% over 16 hours • Power requirements: 100-230 Vac 50/60 Hz Complete system comprising the E1100 3-channel controller together with the MDE123 Elliot Gold™ series XYZ flexure stage fitted with piezo actuators providing 25 µm of piezo travel with 10 nm resolution in each of the three axes.
