Collimator MDE9183

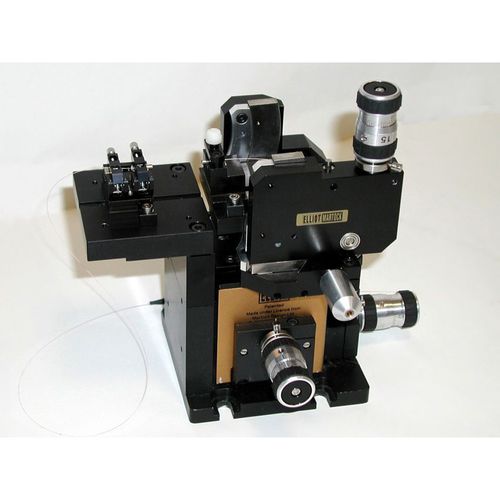

The MDE9183 is configured for the alignment of fibre collimators. It utilises the accurate MDE185 two axis pitch and yaw stage in combination with Elliot Gold™ Series flexure stages giving accurate 5-axis control. Includes model MDE154 clamp set. • Slotted design for easy insertion and removal of fibre • Full 360° rotation • Integral stepper motor drive • Resolution < 0.01° single step • Maximum speed 18°/s (20s for 360°) • Fibre held in variable-force V-groove clamps • V-block preset on axis with less than 1µm concentricity error • Stepper drive controllers available with LabVIEW™ drivers for auto rotation alignment • Standard V-groove for 125/250µm fitted. (Custom sizes available.)
