Rotator MDE884LH

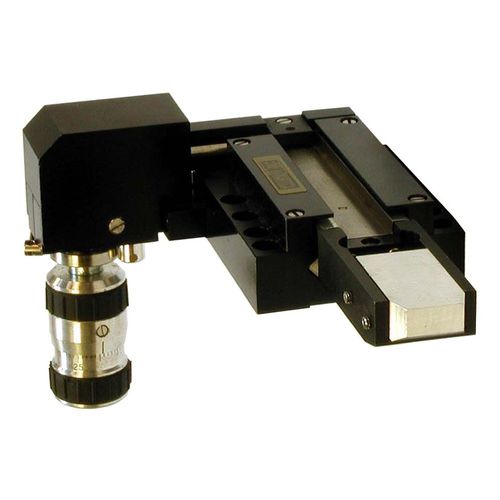

• θx fibre array / crystal manipulator • Rotates exactly on x-axis • Maintains 18 mm centre height • Right and Left handed versions available θx ribbon cable / crystal manipulator (long reach). Unique roll mechanism ensures rotation is exactly about x-axis, and maintains 18 mm centre height. Right and left handed versions available. Can also be supplied with θy and θz adjustments. The front block is machined by Elliot Scientific (or customer) to locate silicon V-groove block on the fibre (US: fiber) ribbon. Alternatively, it can be replaced by a device holder as shown in the photo below. The unique mechanical roll design features a decoupling of the linear adjuster travel from the roll motion, which minimises any radial offset during rotation. This ensures that angular movements are exactly about the x-axis and that no radial offset is introduced. The precision of motion results in a very high level of accuracy of the roll angle.
