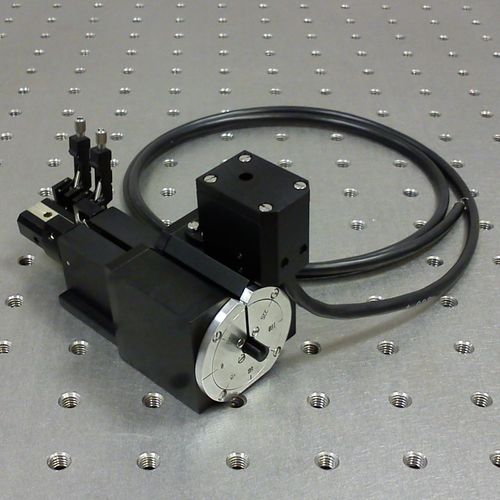

Electric rotator MDE235

• Slotted design for easy insertion and removal of fibre • Full 360° rotation • Integral stepper motor drive • Resolution < 0.01 degrees • Fibre held in variable-force V-groove clamps • V-block preset on axis with less than 1 µm concentricity error • Stepper drive controllers available with LabVIEW™ drivers • Integrates with Elliot Gold™ series flexure stages • Supplied with 125/250 µm standard V-groove (Custom sizes available) The MDE235 is a motorised version of the MDE717 fibre rotator. It includes all the features of the original with the addition of a smooth and accurate stepper motor drive. Designed for the demanding rotation and alignment of angular sensitive components. It can be used anywhere that stable, accurate fibre (US: fiber) rotation is needed. Further options V-groove custom sizes available OEM upgrade kits for fusion splicers to facilitate splicing of PM fibre Custom versions compatible with fibre chucks
