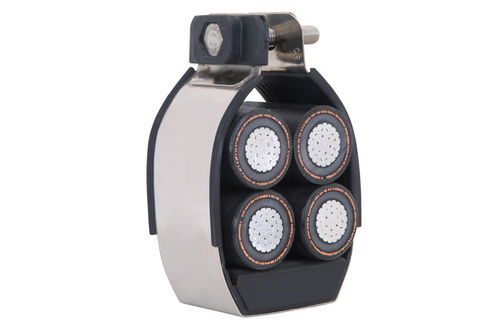

Stainless steel cable clamp Vulcan Quad series

Our Vulcan+ cleats have a unique compact design so they can be easily installed, even when space is limited. Vulcan+ cleats are available in multiple sizes with range-taking capability, to suit trefoil, single, quad or bundled cables. Manufactured in Type 316L stainless steel, Vulcan offer excellent protection against the harshest environmental conditions. To protect and cushion the cables during short-circuit conditions, the cleat comes with an integral Low Smoke and Fume Zero Halogen Polymeric liner and base pad. We recommend fixing VRT+ using one 10mm bolt for sizes 00 to 09, and one or two 10mm bolts for sizes 10 to 20. For VRQ+ use one 10mm bolt for sizes 01 to 06, and one or two 10mm bolts for sizes 07 to 09 (not supplied but available as extras). Alternative bolt recommendations on request. For a more economical installation, cleats can be spaced more widely, with a retention strap fitted in between.
