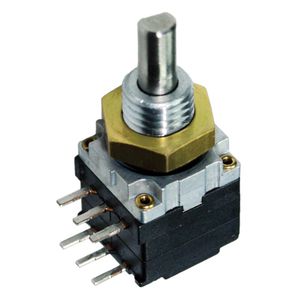

Coded switch C07 seriesrotarysingle-polerugged
Add to favorites
Compare this product
Characteristics
- Type
- rotary
- Number of poles
- single-pole
- Protection level
- rugged, rugged, rugged, robust, IP68
- Mounting
- threaded
- Other characteristics
- industrial, stainless steel, coded, power, custom, 3-position, with 16 positions, precision
- Primary current
10 mA
- Voltage
15 V
- Diameter / length
6 mm
(0.2 in)- Operating temperature
Min.: -40 °C
(-40 °F)Max.: 85 °C
(185 °F)- Width
10 mm
(0.4 in)- Height
10 mm
(0.4 in)
Description

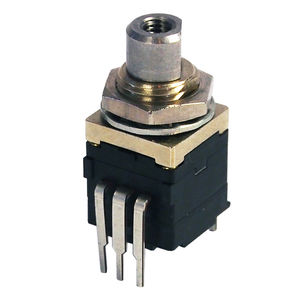

Coded switch with two shafts, HEX or Gray coding with up to 16 positions on outer and 2 or 3 positions on inner shaft
Product Features
22.5° indexing angle (36° indexing angle on request)
Various options and customizations available
HEX or Gray coding with up to 16 positions on outer and 2 or 3 positions on inner shaft
Gold plated contacts
IP60 or IP68 shaft / front planel sealing
Ø 1/8" stainless steel shaft
Threaded M6 or non-threaded bushing (Ø 6 mm)
Soldering eyelets
With end stop
Catalogs
C07 Concentric_Datasheet_E
6 Pages
