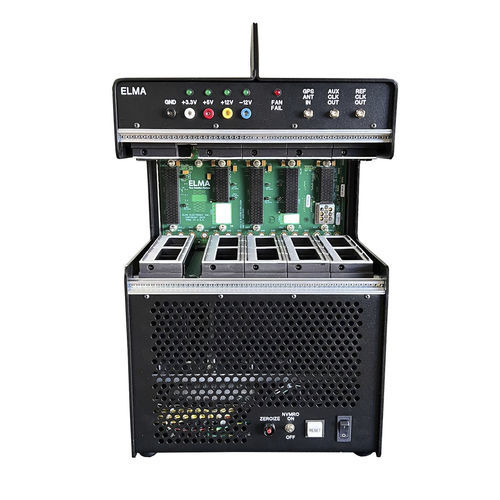

Test platform Type-39A

Elma’s all new CompacFrame platform accelerates the development and test of 3U plug-in-cards (PICs) designed according to VITA 48.8, Air Flow Through Cooling standard. The 3U card cage in the platform is tilted upwards by 5° for easier card access. Product Features Accommodates up to five 1-slot VPX power & ground only backplanes or a single 5 slot AFT backplane - 1SVX306APP-1X31 3U Rear RTM Slots available 1400W ATX PSU standard, with option to replace with 3U VITA 62 plug-in power supply Integrated carry handle & 5º upwards tilt to card cage Front panel voltage monitoring LED’s and test points Front panel reset and power switches Rear accessible VITA 46.11 compliant Shelf Manager Battery for VBAT connection Optional plug-in VITA 46.11 compliant Shelf Manager (ChMC) Accommodates 3U modules according to VITA 48.8
