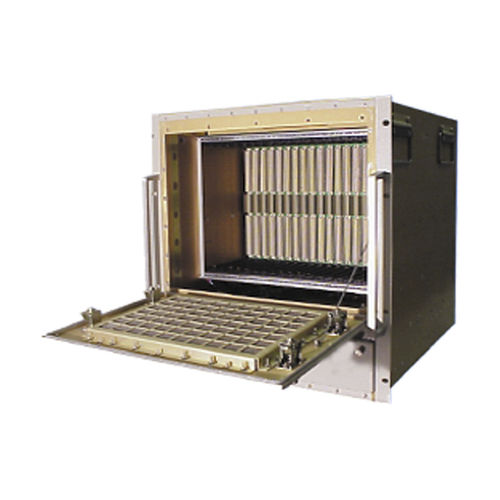

Rack-mount chassis 12R2-10U-V

19"10U84 HP

The 10U, 12R2 is designed to meet the harsh environment of shipboard, airborne, and ground mobile applications per MIL-STDs. Shock isolated versions are designed to attenuate 25G shock inputs to the chassis to less than 10Gs at the card cage. Product Features VPX, VME64x, VME, VXS, CPCI and MicroTCA compatible Designed to meet MIL-STD-5400, MIL-STD-810F, MIL-STD-46IE, MIL-STD-704E, MIL-STD-1275A, MIL-STD-167, MIL-STD-901D. Highly configurable, the unit can be ordered with choice of VME, VME64x, VXS, VPX, CPCI or MicroTCA, fixed or shock isolated card cage 10U H x standard depths: 22" and 25" 12-20 slot, front accessed Front to rear evacuative cooling (350 LFM @ .1" H20) Front mounted LEDs for| voltage monitoring, fan fail and over temp 500 to 2000 watt PSU options 19" rackmount per IEC60297 (slide mounting optional) Custom rear I/O patch panel (rear I/O cards optional) Input options: 90-264VAC Fixed PSU, 47-500 Hz, 28/48VDC
