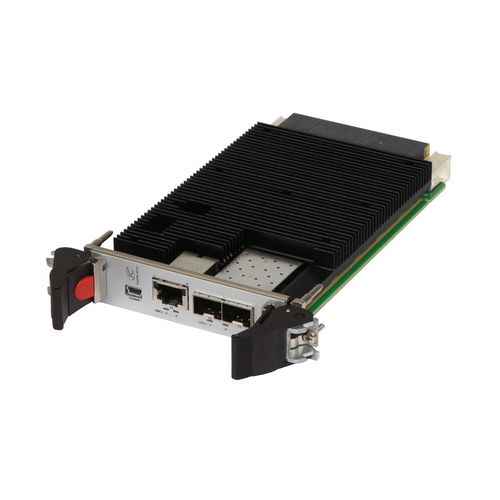

Managed ethernet switch ComEth4420a

12 ports5Gchassis

ComEth4420a is a cutting-edge hybrid managed switch combining PCIe Gen3/4 and 10/40 Gbs Ethernet technologies. Product Features VITA 65.0 Slot Profile SLT3-SWH6F8U-14.4.15 Compliant with the VITA 46.11 Chassis Management specification and includes an IPMI controller chip. It supports IEEE 1588 PTP (Precision Time Protocol) UP to 14 ETh. ports and up to 12 PCIe ports, 1000BASE-KX/10GBASE-KR, 10GBASE-T (rear), 10GBASE-T/1 * QSFP+ (front) 3U VPX, Expansion/Data Plane on the P1 connector, 4 * PCIe ports Gen1/2/3/4 (x4) - each of them can be split into 2* x2 ports or merged (2* x8) Expansion/Data Plane on the P2 connector, 2 *PCIe ports Gen1/2/3/4 (x4) - each of them can be split into 2* x2 ports, or merged (1* x8) Control Plane on the P2 connector, 8 * 1000BASE-KX/10GBASE-KR, 1 * 10GBASE-T Control Plane on the front panel, 1 * QSFP+ (4 * 10G/1 * 40G), 1 * 10M/100M/1G/2.5G/5G/10GBASE-T (RJ45), optional M2 module Expansion/Data Plane PCIe lanes are generated by a high-performance non-blocking switch offering Non-Transparent capability on each port Supporting modes such as partitioning, Upstream, Downstream, and Non-Transparent port modes Control Plane is based on the same technology as the ComEth4000e range using Marvell’s highly integrated System-on-Chip (SoC) with programmable packet processors
