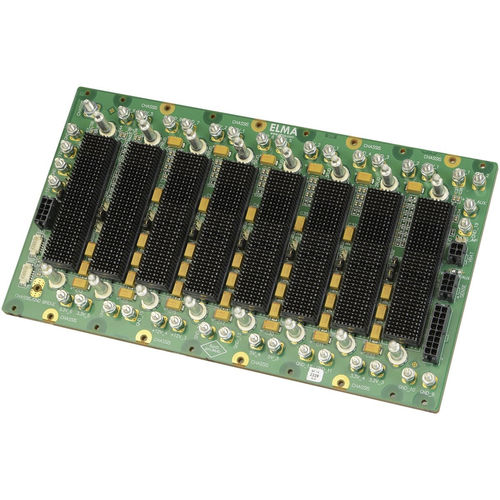

3U OpenVPX Backplane 8-slot, VITA 65, Backplane profile BKP3-CEN08-15.2.15-n, payload slot profile SLT3-PAY-2F2U-14.2.3, switch slot profile SLT3-SWH-6F6U-14.4.1, power connections with M3/M4 power bolts
Product Features
BKP3-CEN08-15.2.15-n backplane profile compliant with the VITA 65 specification
2 x Fat Pipe Data Plane (Fat Pipe = 4 x Lanes), Dual Star
2 x Ultra Thin Pipe Control Plane (Ultra Thin Pipe = 1 x Lane), Dual-Star
No expansion plane
Slot 1-6: SLT3-PAY-2F2U-14.2.3
Slot 7-8: SLT3-SWH-6F6U-14.4.1
Slot 7-8: SLT3-SWH-6F6U-14.4.1
