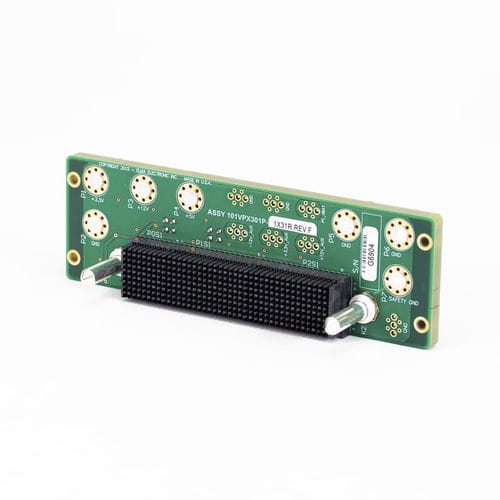

VPX backplane 101VPX301P-1X31R1-5 slots
Add to favorites
Compare this product
Characteristics
- Bus standard
- VPX
- Number of slots
- 1-5 slots
Description
Power for 3.3V, 5V and 12V are included, rear connectors are all fully loaded, use with Elma’s slot to slot or slot to I/O bulkhead cable products during system development.
Product Features
Compliant to the latest VITA 46 / 65 specifications
Versions available support VITA 66 (fiber optic) and VITA 67 (RF) modules
Power and ground only backplane for simple and low-cost development
3.3V, 5V, and 12V power
P1- P6 pins are user-defined
Backplanes have the utility plane implemented in P0 and P1
NVMRO, SYSRESET#, SYSCON# and maskable reset are supported
