Storage tank powder coatingfor pumpfor engine
Add to favorites
Compare this product
Characteristics
- Function
- storage
- Product applications
- powder coating, for pump, for engine, for compressed air, container
- Type
- cylindrical
- Applications
- industrial
- Other characteristics
- horizontal
- Capacity
50 l
(13.209 gal)- Pressure
Min.: 0 bar
(0 psi)Max.: 11 bar
(159.5 psi)
Description

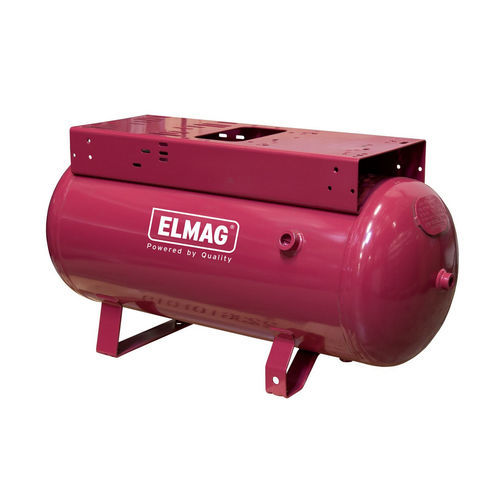

ELMAG® EURO CE compressed air storage tanks are CE-compliant, TÜV-tested and suitable:
- For direct attachment of a pallet unit or an existing compressor
- Models 50-200 litres with bracket suitable for fitting the motor and aggregate
Dimensions
A - 82 cm
B - 60 cm
C - 31 cm
D - 57 cm
E - 50 cm
F - 22 cm
G - 29 cm
1 - 1 inch
2 - 1 inch
3 - 3/8 inch
4 - 1/2 inch
5 - 3/4 inch
Technical Facts
-High quality of workmanship
-Corrosion protection through high-quality powder coating on the outside
-Weld inspection
-Quality inspection
-TÜV type approval
-CE conformity
-10 year warranty against cylinder corrosion
-Tank coated on inside
Substitute
This article could be an alternative for you:
10150 - Compressed air tank, horizontal, 11 bar EURO L 100 CE, including bracket for engine and
aggregate, NEW: Internal coating
(suitable for pumps B2800, B3800
and B4900)
Specifications
Max. operation pressure
11 bar
Container volume
50 l
Dimensions
820x310x290 mm
Weight
20 kg
