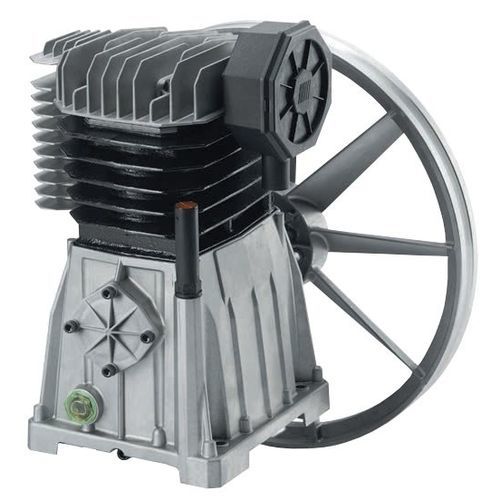

Air compressor unit PAT 24-A

screwstationarypositive pressure

ELMAG® offers a wide range of quality components and replacement parts for construction and repair of air compressors: Compressor units, pressure switches, valves and all necessary accessories. All components are produced in proven, robust industrial quality and impress with the professional processing they deliver to certified standards. TECHNICAL FACTS -Operating pressure max. 11 bar -Indirect drive by means of V-belt by electric or petrol engine -Robust compressor cylinder made of grey cast iron -Triple ring high-performance precision pistons -Twin cylinder unit -Intermediate and aftercooler made of die-cast aluminium, with large cooling fins -Generous, flow-optimised cast fan wheel SPECIFICATIONS -Effective delivery amount195 l/min -Delivery quantity according to VDMA 4362, measured at 80% of the maximum pressureYes -Suction power330 l/min -Max. operation pressure11 bar -cylinder quantity2 Pcs. -Oil lubricatedNo -Motor nominal power2,2 / 3 kW / PS -electrical connection voltage / frequency400/50 V/Hz -rotational speed compressor1450 rpm -Length240 mm -Width270 mm -Height300 mm -Weight10 kg
