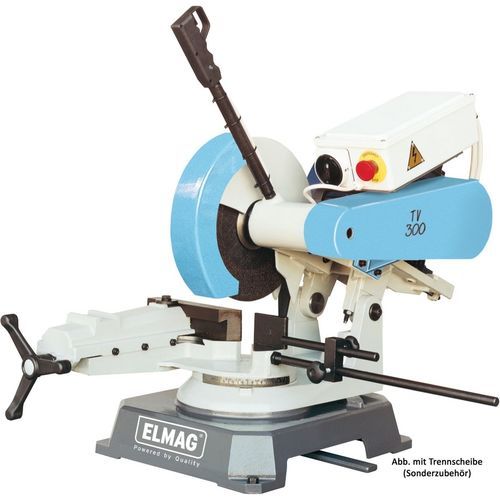

Rotary blade cutting machine TV 300

for metalbardisc

Modern cutting machines for cutting rod materials such as round and shaped pipes, profiles and solid materials made of steel, INOX/NIRO/stainless steel, cast iron and non-ferrous metals. Ideal for indoor use, also for outdoor use under protected conditions, e.g. on large construction sites for rapid separation of construction and reinforcement irons. Standard features - TV metal cutting machine - Bar lock with material stop - WSS quick-action angle clamp/angle scale - Adjustable cutting depth stop - Cutting and grinding vice - Adjustable jaws - High-performance belt drive - ERGO operating lever with reset Technical Facts -Virtually burr-free cutting: super-fast cutting disc drive with high-precision bearing -Highest repeatability in serial cutting: strong bar lock with adjustable material stop -Fast and precise angle adjustment with only one handle: with WSS quick-release angle clamp and angular scale 45-0-45° -Cutting depth can be set precisely: with adjustable depth impact -Variable clamping range: Clamping jaw laterally adjustable -Powerful: ideal drive unit dimensions with high torque -Ideal drive form: smooth, high-performance V-belt drive -Stable, sensitive cutting guide: ERGO control lever with permanent safety switch and automatic reset -Reliable: V-belt drive with fixed protective cover, self-closing cutting disk protection, emergency stop button, zero voltage release, CE-compliant -Durable: very robust commercial and industrial design -Separation range max. 140x80 mm -Cut-off wheel diameter 300mm -High power drive - 4,000 W
