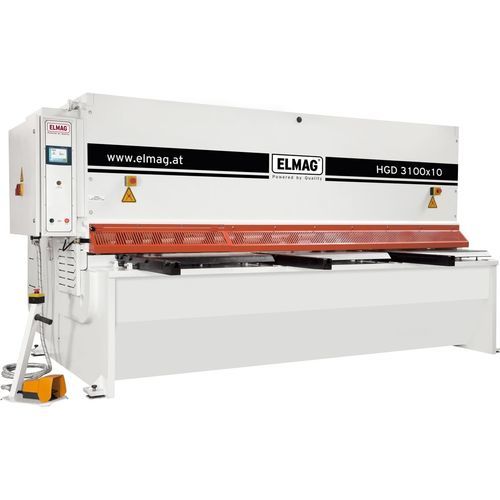

Hydraulic shear HGD 3100x6mm

sheet metalswing-beamCNC

The HGD hydraulic swing beam shears are designed for precise heavy plate processing, but are equally suitable for medium and thin plates. With cutting thickness models up to 20 mm, they cover the needs of machine and steel construction companies. High-quality materials HGD models are able to withstand the heaviest wear and tear over the long term, because the steel type S275 with increased ductility and tensile strength is used for the monoblock welded constructions of the machine body and the upper beam. High-alloy, ground special steel blades, German quality products offer a light, clean and straight cut. Flat knife guide The large, precisely guided blade bar provides a shallow cutting angle. Sheet metal sections are precisely pre-tensioned and fully cut. Thin sheet remains straight and is cleanly cut. Equipped with CybTouch Heavy cuts, easy programming. The newly integrated CybTouch cutting control with large colour touchscreen and visually impressive user guidance considerably simplifies machine set-up and operation. Excellent features HGD sheet metal shears have excellent features as standard - e.g. with central kerf adjustment, NC-controlled back gauge, cutting line illumination etc. Top accessories HGD models can be upgraded with automatic kerf and stroke adjustment (only with CNC control HGD). For further accessories, see overview. HGD standard features - upper and lower blades for stainless steel processing - Hydraulic kerf adjustment - Upper blade with two cutting edges, special steel hardened - Hardened special steel lower blade with four cutting edges - Kerf adjustment device - NC-controlled back gauge with ball screw - Cutting line illumination
