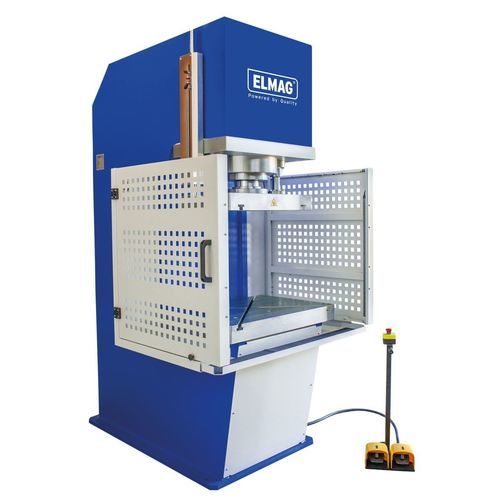

Hydraulic press HPC 50

manualelectricstraightening

- The hydraulic C-frame presses are used for punching, embossing, deep drawing and straightening. - The hydraulic production presses from ELMAG® have a welded construction, which is made entirely of ST52.3 steel. - Double-action cylinders with a guide bushing and anti-twist protection are standard features. - Operation is via an electric foot switch. - Equipped with a front safety light barrier as standard. - Equipped with three cylinders (2 guide cylinders). - Work table and press table made of CK 42 material with T-slots DIN 650. - Side depth stop on the machine. - Anti-twist press table. - Special versions available on request! Standard features - Overload safety valve - Compression pressure gauge - On/off control valve - Chrome-plated cylinder piston - Operating instructions / CE Specifications press power max. 50 t electorhydraulic drive Yes two drive speeds Yes piston speed step 1/2 6.3 / 31.4 mm/s Return travel speed 41,90 mm/s motor power 4000 W mains connection 400/50 V/Hz machine height 2.045 mm machine length 1.350 mm machine width 1.180 mm Desk height 850 mm Overhang length 265 mm lower desk 700x450 mm upper desk 550x300 mm Piston stroke 250 mm Weight 1.750 kg operating manual / CE No
