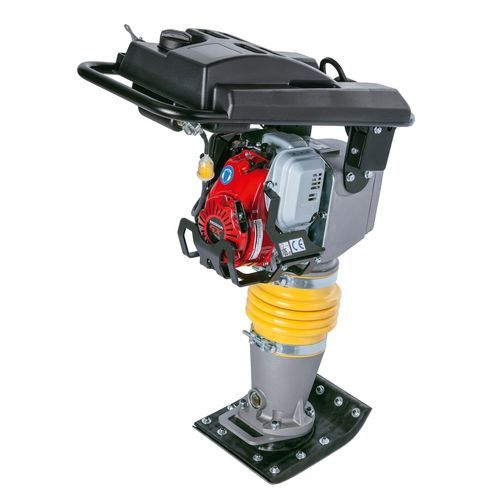

Rammer TCD-70

The ELMAG rammers impress with their ease of use and high level of comfort in operation. Whether on the straight or in narrow trenches - the TC series has the right device for every construction site. A Hatz diesel model which is especially suitable for the requirements of a rammer delivers very high reliability. With the different padfoot sizes, any type of work can be carried out cost-effectively. The new design allows very simple operation during service and maintenance. Technical Facts -New device design allows quick access to the coupling for maintenance purposes -The new design of the tank and tank cap offer a very high leakage safety -Large jump amplitude enables higher soil compaction -Projectors made of high-strength steel and impact-resistant plastic that are suitable for construction sites offer optimum protection for the engine and attachments -Stress-free working due to lower noise level -Easy access to the choke -Compact design allows turning in trenches Specifications stompfeet width 280 mm jumpheight 65 mm motor type HATZ 1B20 power 3,30 kW Frequency 12-Oct Hz Weight 70 kg
