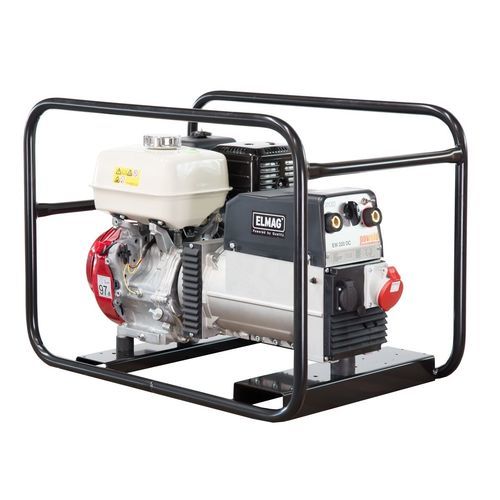

Arc welding generator SEB 200X

electrodeDC

SEB X generators are useful in service and assembly operations, on construction sites and in agriculture - in short, whenever power is needed for electrode welding and power tools and lighting in areas with no mains supply. As emergency power systems, we recommend normal generators of the SEB series because they have better voltage regulation. X models have standard sockets for connection of commercial electrode holders. They allow processing with rutile and basic electrodes up to diameters of 4, 5 and 6 mm. SEB 200X - Top-sellerPrivate universal power generator for DC welding, professional device for construction site and service applications, ideal for reinforcement and assembly welding. Equipment - Connections: 1 x plug Ø 13 mm, 35/50 mm², 1x 230 V Schuko 16A and 1x 400 V CEE 16A-5p - Manual start - Shut-off: Low oil and overload - Synchronous generator - Protection type IP 23 Technical Facts -Easy handling - hand start with Honda EasyStart system -Reliable in operation - IP23 protection against water spray -Thermal circuit breaker with shutdown in case of overload -Further models on request! Specifications voltage frequency 400 / 230/50 V/Hz welding power 35% ED 200 DC A welding power 60% ED 150 DC A maximum electrode diameter 4 mm maximum power 3~400V 6,50 kVA maximum power 1~230V 3,50 kVA fuel Petrol rotational 3000 rpm cooling air-cooled engine type Honda GX 390 engine power 8.2 kW capacity 389 cm3 cylinder 1 tank capacity 6,10 l consumption at 75% load 2,40 l/h Running time per tank filling at 75% load 2,50 h dimensions lxbxh 830x550x600 mm weight (without fuel) 90 kg
