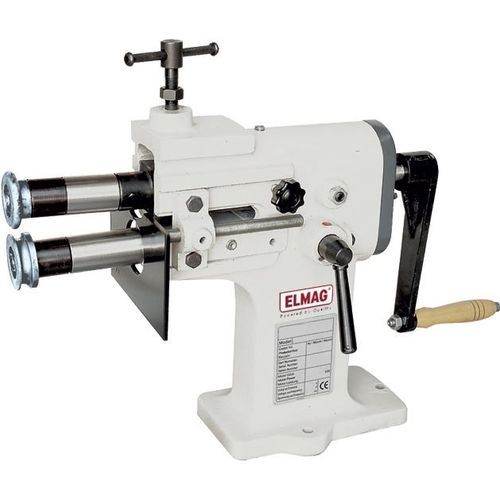

Beading machine AK 0,8 mm

Beading machines enable the production of profiles from flat or cylindrical sheets - for example, by embossing depressions (beads) that increase the rigidity and enable form-fitting longitudinal assembly of pipes. The required profile is pressed into the metal sheet with the aid of embossing rollers. The rollers have a positive and a negative profile and can be changed over quickly. Beading machines are equipped with an adjustable depth stop. The flat or cylinder plate is pushed through as far as it will go, the idle roller is pressed lightly and the drive roller is set in motion. While the plate runs several times through the machine, the idle roller is gradually fed in in order to achieve a sufficiently strong deformation (beading, flanging or drawing depth). Standard features - 5 standard roller sets - Mechanical adjustment device - Adjustable depth stop - Operating instructions / CE Special accessories Special roller sets Technical Facts -Light, manually operated beading machines -Processable sheet thickness up to 0.80 mm -Adjustable, ground depth stop for precise sheet guidance -Roller with mechanical adjusting device -Sturdy cast iron frame -Only 35 kg, ideal for construction site operation -With five standard roller sets -Special roller sets available as special accessories Specifications Max. plate thickness 0,80 mm Shank length 200 mm rolls diameter 53 mm rotational speed manual Length 300 mm Width 200 mm Height 500 mm Weight 35 kg
