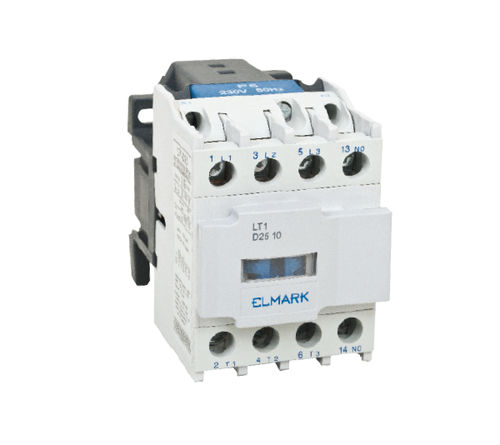

Power contactor 23321motorsafetyelectromechanical
Add to favorites
Compare this product
Characteristics
- Function
- power, motor, safety
- Technology
- electromechanical
- Electrical characteristics
- AC, three-phase, low-voltage
- Contact configuration
- 1 NO
- Applications
- for motors, industrial
- Other characteristics
- DIN rail
- Primary current
32 A
- Load voltage
230 V
Description
- Rated operating voltage of power contactors: up to 690V; 50/60Hz
- Surge voltage wear resistance: >8000V
- Rated operating voltage of the coil: 12/24/36/48/110/230/400
- Electrical wear resistance (number of cycles): ≥1000000
- Mechanical wear resistance (number of cycles):≥10000000
- Number of cycles (switchings ON) per hour:
6-32А - 1200cycles
40-95А - 600cycles
- Pole leaking power: up to 13W
- Ambient temperature: -10°÷60ºС
- Maximum altitude: up to 2000m
Mounting: on a DIN rail or using bolts to a flat surface in a vertical position with maximum gradient of ±5°
Standards: EN60947-1; EN60947-4-1
