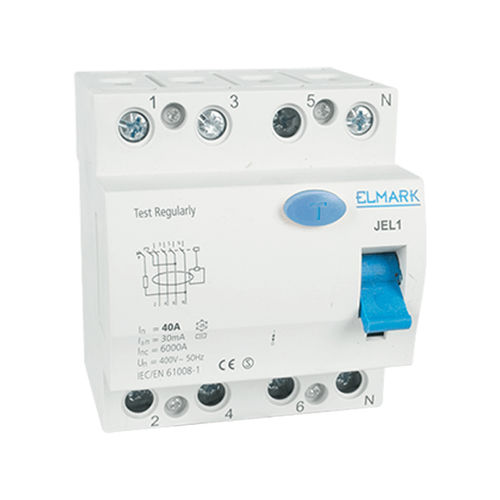

Residual current residual current circuit breaker JEL1earth-leakagemanualautomatic
Add to favorites
Compare this product
Characteristics
- Electrical characteristics
- residual current, earth-leakage
- Operating mode
- manual, automatic
- Applications
- distribution
- Number of poles
- 4-pole
- Other characteristics
- DIN rail
- Primary current
Max.: 100 A
Min.: 10 A
- VAC
230 V, 400 V
- Rating
30 mA, 100 mA, 300 mA, 500 mA
Description
Technical characteristics:
- Rated current: 10-100 А
- Rated operating voltage: 230/400V; 50/60Hz
- Rated residual current: 30/100/300/500 mA
- Number of poles: 2/4
- Surge voltage wear resistance: ≥2000V
- Short circuit current wear resistance: 6000А
- IP code: IP>20
- Ambient temperature: -10°÷65ºС
- Installation altitude: up to 2000m
Catalogs
No catalogs are available for this product.
See all of Elmark‘s catalogs
