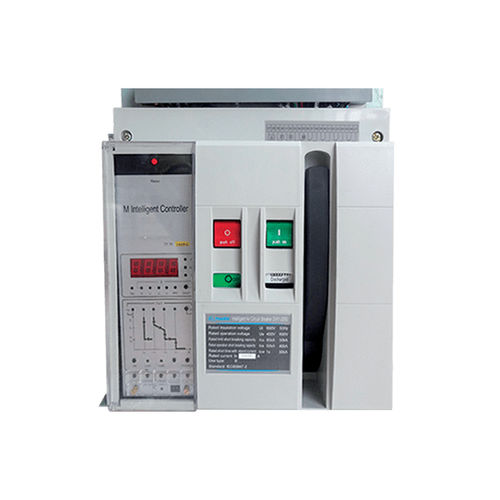

Air-operated circuit breaker DW1short-circuitoverloadautomatic
Add to favorites
Compare this product
Characteristics
- Type
- air-operated
- Electrical characteristics
- short-circuit, overload
- Operating mode
- automatic, manual
- Applications
- distribution
- Number of poles
- 3-pole
- Other characteristics
- molded case
- Primary current
Min.: 1,600 A
Max.: 3,200 A
- VAC
400 V
Description
Technical characteristics:
- Rated operating voltage: 690V; 50/60Hz
- Insulation voltage: 2000V
- Surge voltage wear resistance: ≥ 8000V
- Rated current: 2000А;2500А;3200А
- Breaking capacity: 80кА;100кА
- Electrical wear resistance (number of cycles): ≥ 2000
- Mechanical wear resistance (number of cycles): ≥ 9000
- IP code: IP54
- Ambient temperature: -10°÷65ºС
- Maximum altitude: up to 2000m
Mounting: On a vertical surface using bolts and maximum gradient of 5%
