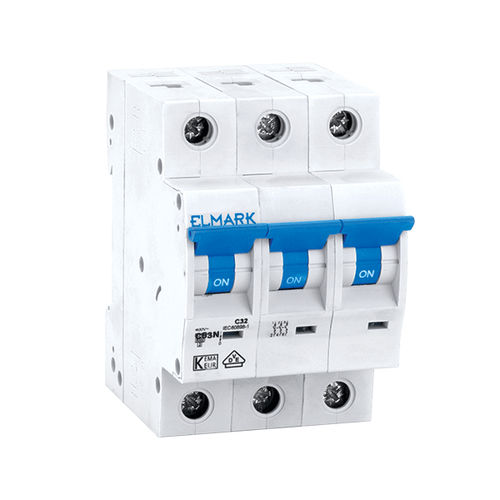

Magnetic circuit breaker 41325Cshort-circuithigh-powerAC
Add to favorites
Compare this product
Characteristics
- Type
- magnetic
- Electrical characteristics
- short-circuit, high-power, AC, phase, 3-pole
- Operating mode
- modular
- Applications
- distribution, electrical power supply
- Number of poles
- 3-pole
- Other characteristics
- MCB, DIN rail
- Primary current
6,000 A
- VAC
400 V
- Rating
Max.: 63 A
Min.: 2 A
Description
- Tripping curve: B, C
B - The maximum current release breaks between 3 and 5 In; used to protect long circuits and generators
С - The maximum current release breaks between 5 and 10 In; used to protect main power supply cables and conventional consumers
- Electrical wear resistance (number of cycles): ≥8000
- Mechanical wear resistance (number of cycles): ≥50000
- Limitation class: 3
- IP code: IP>20
- Ambient temperature: -5 to +65°С±2°С
Mounting: Vertically on a DIN rail
Standard: EN60898-1
