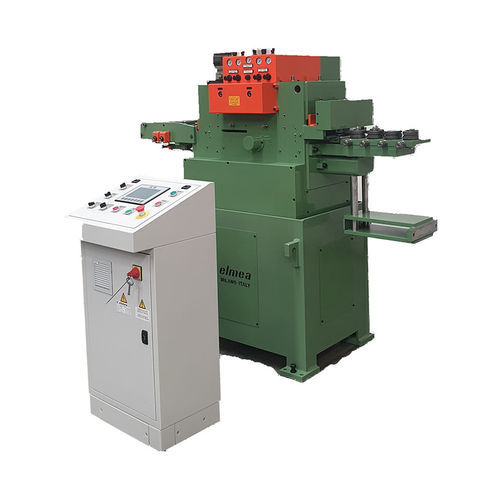

Sheet metal straightener-feeder MRA 19

• Solid and long lasting machinery, robust structure in electro-welded steel • Accurate design • Designed to take up the least possible space • Designed to meet client requirements, event for off standard requirements • Motorised rollers manufactured in-house in tempered and ground steel. • Rollers with gears on both ends obtained from a single body for high mechanical performance and long-lasting over time • Rollers activated by a continuous current motor with adjustable speed • Higher production in less time: pneumatic pistons opening pulley roller with limiter to speed up pilot • Simple use: our feeder motor-straighteners do not require specialist staff • Low operating costs: little maintenance, components subject to wear last over time • The feeder motor-straightener model MRA 19 straightens tape measuring 300 mm wide • The feeder motor-straightener model MRA 19 can straighten sheet metal with a maximum thickness of 3.5 mm • The feeder motor-straightener model MRA 19 is equipped with 11 rollers in ground, tempered steel with a hardness of 62 HRC of which 2 pull inbound + 7 straighten + 2 pull outbound • The diameter of the rollers is 80 mm • The rollers are manufactured entirely in Elmea and have gears obtained from a single body to guarantee high mechanical performance and duration over time. • When the force and the width of the tape require it, the rollers are centrally counter-rolled • On request, we can carry out chrome-plating treatment on rollers, ideal for use on sheet metal in stainless steel, brass, aluminium and copper. • Finishing and levelling rollers with penetration gauge
