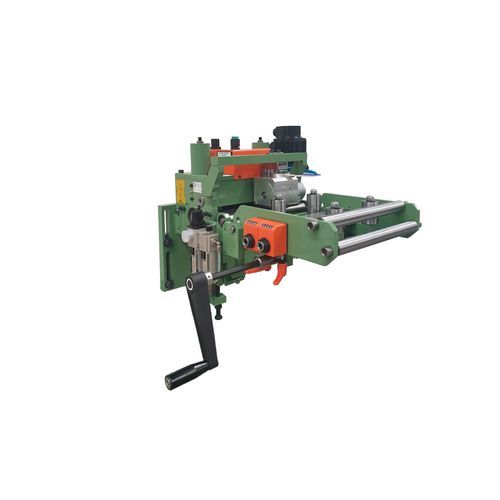

Electronically controlled feeder MA 126

rollerfor metal

• The Electronic feeder model MA 126 is constructed in the following tape widths:100 mm – 200 mm – 300 mm – 400 mm – 500 mm • The Electronic feeder model MA 126 can feed sheet metal with a maximum thickness of 2.5 mm • The Electronic feeder model MA 126 is equipped with a ground, tempered steel rollers with a hardness of 62 HRC • The diameter of the rollers is 60 mm • On request, we can carry out chrome-plating treatment on rollers, ideal for use on sheet metal in stainless steel, brass, aluminium and copper. • The Electronic feeder model MA 126 is equipped with a manual lift to align the tape passage surface to the height of the press +/- 50 mm. On request +/- 100 mm • The Electronic feeder model MA 126 has a feeding speed of 115 m/1’ and implements up to 120 strikes per minute with a maximum pitch of 200 mm • The Electronic feeder model MA 126 is activated by a brushless motor by DELTA ELECTRONICS and a planetary gear by NIDEC SHIMPO • Motorised lift to align the tape passage surface to the height of the press • Chrome-plated rollers ideal for fragile tape such as aluminium. • Ribbed rollers ideal for thick tapes • Electronic cams kit • Touch-Panel and mobile keypad for manual controls within reach • Modern wi-fi for remote support with remote connection useful to speed up diagnostics and interventions in the event of machine malfunctions. Less production downtime and contained costs of on-site technical support
