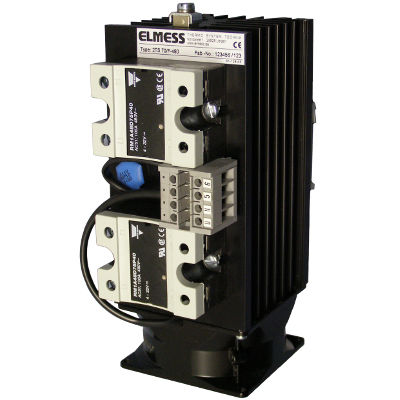

Thyristors power controller

for heating systems

Thyristor controllers are contact less and thus wear-free switches. Thyristor controllers are suitable for switching without ohmic loads. They work with a zero-crossing of the voltage with an output between 0... 100 %. The errors coming from this switching principle are negligible. Control is carried out via logic signal (impulse groups) of 0 V and 4...32 V DC or with 24...265 V AC. Available types are divided into rated currents of 30 A, 50 A, 70 A and 100 A with rated voltages of 480 V AC, 500 V AC and 690 V AC. The devices for switch cabinet installation are supposed to be assembled on a 35mm standard rail. For a rotary current economic connection two devices are required of 30 A or 50 A units. Optionally, a monitoring function can be integrated. Thyristor controllers with active cooling (fan) require auxiliary energy and are equipped with a temperature switch. Thyristor controllers and ELMESS temperature monitoring and controlling devices are perfectly suited for controlling heaters, e.g. in an ELMESS cascade loop control.
