Curing oven

electricforced convection

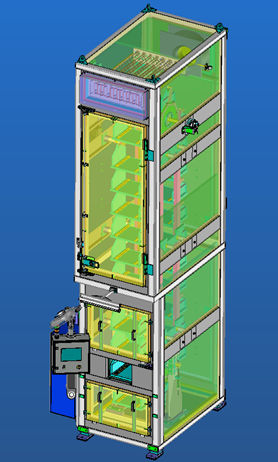

The paternoster oven is a customised solution. It has a chain conveyor to which swinging plates (also called baskets) are attached. The baskets transport the parts in a closed circuit (loop, paternoster). The size and number of the baskets depend on the specifics of the parts to be treated and of the thermal process based on the technical data provided by the customer. The paternoster oven is a compact solution. It is ideal when an oven has to be inserted into an existing production line which has limited space. Versatile, it can be used for all thermal processes up to a temperature of approx. 150 °C. Example: - Paternoster oven for preheating - Paternoster oven for annealing - Paternoster oven for polymerisation - Paternoster oven for stress relief - Paternoster oven for drying Data for the example of the paternoster oven: -overall dimensions (without control cabinet) 1.90 m x 1.25 m x 5.60 m -25 baskets totalling 400 x 400 mm -weight 1.5 t -Monobloc -One heating zone -curing of thermoplastic components for car fuel tanks -Working temperature 100 °C -Temperature not above 120 °C -Installed power (heating rack) 40 kW -Volume flow of convection air, max. 6000 m3/h
