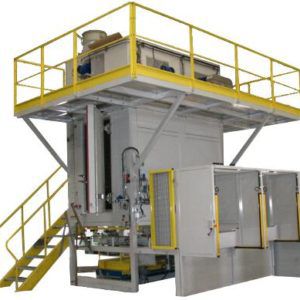

Vertical oven, "stacked tray oven"
Industrial oven with a vertical conveyor : the products are put on trays that are stacked into two tray piles; the stacked trays are conveyed vertically; lateral displacement for changing between tray stacks; conveying to and from the loading and unloading stations.
Extremely compact, this concept based on stacked trays enables to reach higher temperatures as the trays are displaced without any chain conveyors. All the mobile mechanical parts are located outside the heating zone.
