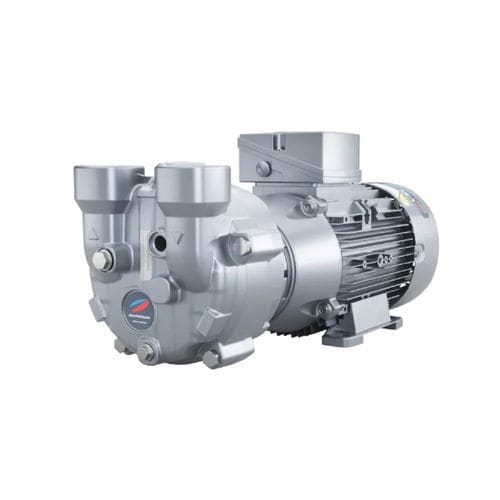

Liquid ring compressor L-BV2airelectricstationary
Add to favorites
Compare this product
Characteristics
- Technology
- liquid ring
- Type
- air
- Power source
- electric
- Portability
- stationary
- Applications
- construction
- Pressure
Max.: 2.5 bar
(36.26 psi)Min.: 0 bar
(0 psi)- Flow
Max.: 145 m³/h
(5,120.63 ft³/h)Min.: 23 m³/h
(812.24 ft³/h)- Power
1.1 kW, 1.3 kW
(1.5 hp, 1.77 hp)
Description
The monoblock construction is particularly suited for use in the plastics and medical industries.
Robust and reliable.
Available in various combinations of materials such as stainless steel, bronze, ceramic and cast iron with ceramic coating.
Long lasting due to ceramic coating.
Can be customized.
Long-term resistance to erosion and corrosion.
Reinforced stainless steel shafts in the pump section.
Roller bearings with additional lubricant reservoir provide safe and maintenance-free operation even under heavy loads.
IE3 / Nema Premium on request.
Units with closed or partial water circuits are available as standard sytems.
