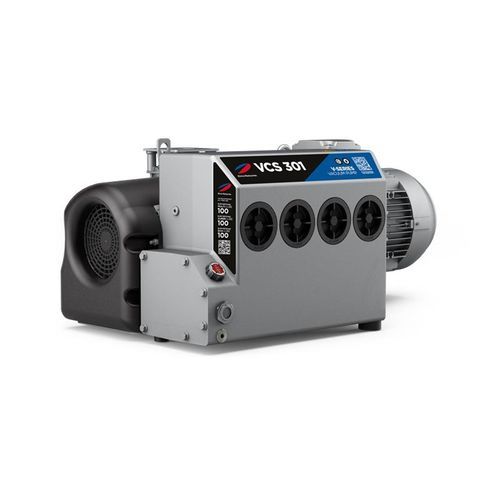

Rotary vane vacuum pump V-VCS
oil-lubricatedsingle-stageOEM

rotary vane vacuum pump
rotary vane vacuum pump
rotary vane vacuum pump
Add to favorites
Compare this product


Characteristics

Technology
rotary vane
Lubrication
oil-lubricated
Number of stages
single-stage
Applications
OEM
Ultimate vacuum

0.5 mbar
(0.01 psi)

Flow rate

Max.: 360 m³/h
(12,713.28 ft³/h)

Min.: 200 m³/h
(7,062.93 ft³/h)

Power

4 kW, 5.5 kW
(5.44 hp, 7.48 hp)

Noise level

67 dB

Description

The latest evolution in rotary vane design has arrived with the new VCS range in the Elmo Rietschle V-Series. The new V-VCS200 & V-VCS300 has been developed to improve the overall performance of this tried and tested rotary vane vacuum pump technology. This evolutionary design provides our lowest cost of ownership for an oil lubricated rotary vane vacuum pump, whilst weight, noise and size reductions make it easily adaptable and retrofitable. Our evolutionary new design offers: Reduced size and weight Lower heat and noise emissions Lower lifetime costs with a reduction in filter requirements with no drop in oil particulate removal whilst consequently reducing maintenance requirements Reduced oil consumption also combines to make this machine one our most eco-friendly oil lubricated machines available Design for the OEM market, the new VCS model can be easily retrofitted into most machines
