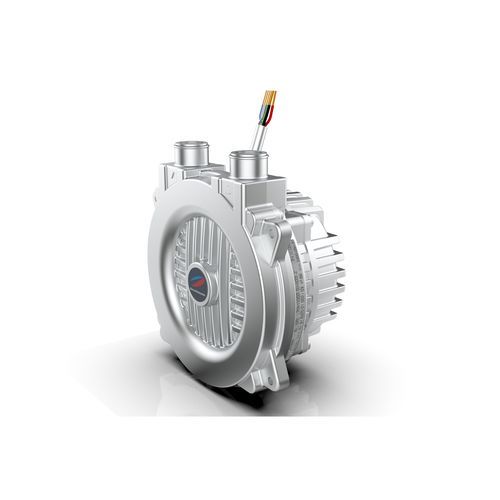

Air blower G-BH100side-channelsingle-stagefor vacuum
Add to favorites
Compare this product
Characteristics
- Type
- air
- Technology
- side-channel
- Number of stages
- single-stage
- Applications
- for vacuum
- Other characteristics
- variable-speed
- Flow
Max.: 35 m³/h
(1,236.013 ft³/h)Min.: 21 m³/h
(741.608 ft³/h)- Operating pressure
Max.: 100 mbar
(1.45 psi)Min.: 0 mbar
(0 psi)- Nominal power
Max.: 300 W
(0.408 hp)Min.: 90 W
(0.122 hp)
Description
Height and width of approx. 125 mm and a depth of approx. 60 mm.
Smallest side channel blower available on the market.
Adjustable volume flow of the machines.
Robust and built-to-last design.
High level of efficiency.
Driven via an electronically commuted DC motor.
IE regulations do not apply to DC motors.
Maintenance-free operation for more than 20,000 operating hours.
The operating electronics are a standard feature of the machines which allow infinitely variable control of speed and output of the blower.
