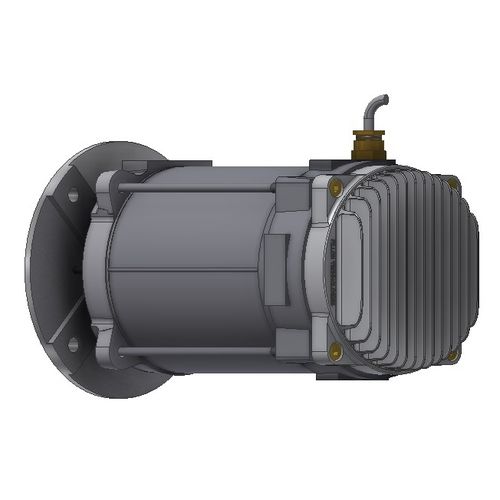

AC motor
asynchronous220 VATEX

AC motor
AC motor
Add to favorites
Compare this product


Characteristics

AC/DC
AC
Type
asynchronous
Voltage
220 V
Protection class
ATEX, IECEx
Other characteristics
high-speed, integrated speed control 0-10 V
Rotational speed

Max.: 1,500 rpm
(9,424.78 rad.min-1)

Min.: 30 rpm
(188.5 rad.min-1)

Description

Integrated inverter card for use in hazardous areas Speed range: From 30 up to 1 500 rpm Motor power: up to 750W Input voltage: Single phase 220 - 240V 50Hz Input signal speed control * 4mA - 20mA * 0V - 1 0V * Pot. meter (external knob) Integrated design The electronic card is mounted in the rear-end of the motor, resulting in a very compact explosion proof design. ATEX, IECEx and INMETRO approved The complete motor with the control card included is approved to: Ex II G Ex db IIB T6 to T3 Gb
